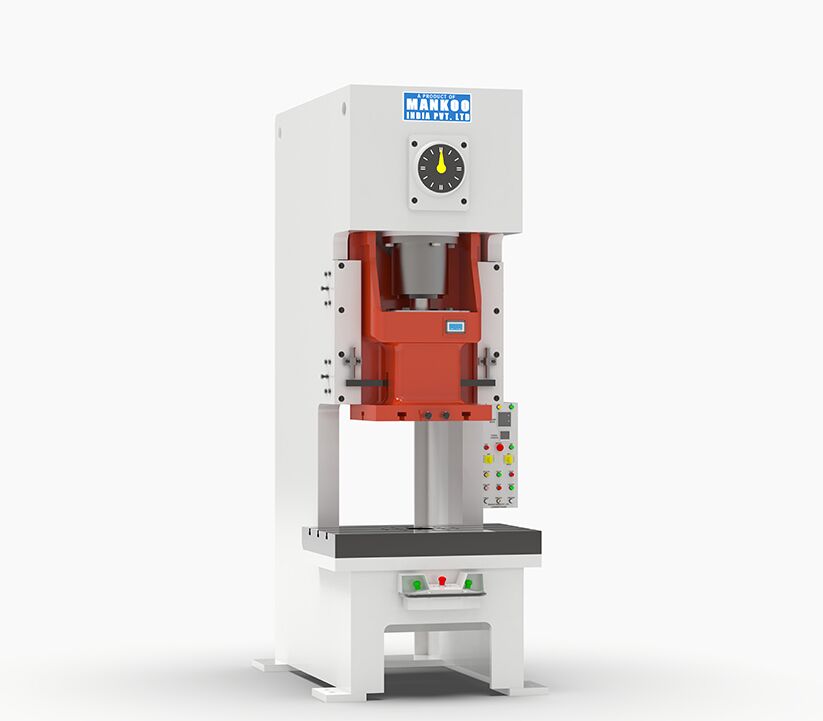

Plunger Guided Link Motion Press : The Mankoo Presses

The Mankoo Plunger Guided Link Motion Press is a versatile and efficient metal forming machine designed for a wide range of industrial applications. This press utilizes a unique link motion mechanism that provides precise control over the ram movement, ensuring consistent and high-quality results.

Product Specifications

The Mankoo Plunger Guided Link Motion Press Machine is available in various models, each designed to meet specific production requirements. The press features a sturdy frame constructed from high-quality materials, ensuring long-lasting performance and durability.

Key specifications include:

• Pressing capacity: 25 to 1000 tons

• Stroke length: 50 to 500 mm

• Bed size: 600 × 900 mm to 2000 × 3000 mm

• Daylight: 300 to 1000 mm

• Shut height: 200 to 800 mm

• Approach speed: 100 to 300 mm/s

• Working speed: 5 to 50 mm/s

• Return speed: 100 to 300 mm/s

The press is equipped with a pneumatic plunger guidance system that ensures precise and consistent ram movement, minimizing vibrations and noise during operation.

Types and Models

Mankoo Presses offers a range of link motion press models to cater to diverse industrial needs. Some of the popular models include:

 Mankoo PG-LMP Series

The PG-LMP series is designed for high-speed and high-precision metal forming applications. These presses feature a compact design and are suitable for a wide range of industries, including automotive, electronics, and consumer goods manufacturing.

Mankoo PG-LMP-H Series

The PG-LMP-H series is engineered for heavy-duty applications that require high pressing capacity and durability. These presses are ideal for industries such as construction equipment, mining, and heavy machinery manufacturing.

 Mankoo PG-LMP-S Series

The PG-LMP-S series is designed for specialized applications that require precise control over the ram movement. These presses are suitable for industries such as medical device manufacturing, aerospace, and precision engineering.

 Uses and Benefits

The Mankoo Plunger Guided Link Motion Power Press is versatile and can be used for a wide range of metal forming processes, including blanking, piercing, bending, and drawing. The press is particularly well-suited for applications that require high precision and repeatability, such as the production of automotive parts, electronic components, and medical devices.

Key benefits of using the Mankoo Plunger Guided Link Motion Press include:

1. Precise control over ram movement: The plunger guidance system ensures accurate and consistent ram movement, resulting in high-quality products with tight tolerances.

2. Increased productivity: The press's high-speed capabilities and efficient design contribute to increased production rates, allowing manufacturers to meet tight deadlines and reduce costs.

3. Reduced maintenance: The press's robust construction and high-quality components minimize the need for frequent maintenance, reducing downtime and maintenance costs.

4. Improved safety: The press is designed with safety features such as emergency stop buttons, light curtains, and interlocked guards to protect operators and ensure a safe working environment.

5. Customizable options: Mankoo Presses offers customizable options to meet specific customer requirements, such as custom die cushions, automation systems, and special coatings.

Conclusion:

The Mankoo’s Plunger Guided Link Motion Press is a reliable and efficient metal forming solution that delivers high-quality results and increased productivity. With its precise control over ram movement, robust construction, and customizable options, the press is an excellent choice for manufacturers looking to streamline their metal forming processes and stay competitive in today's market.
